> Underground operator for swing gates ...

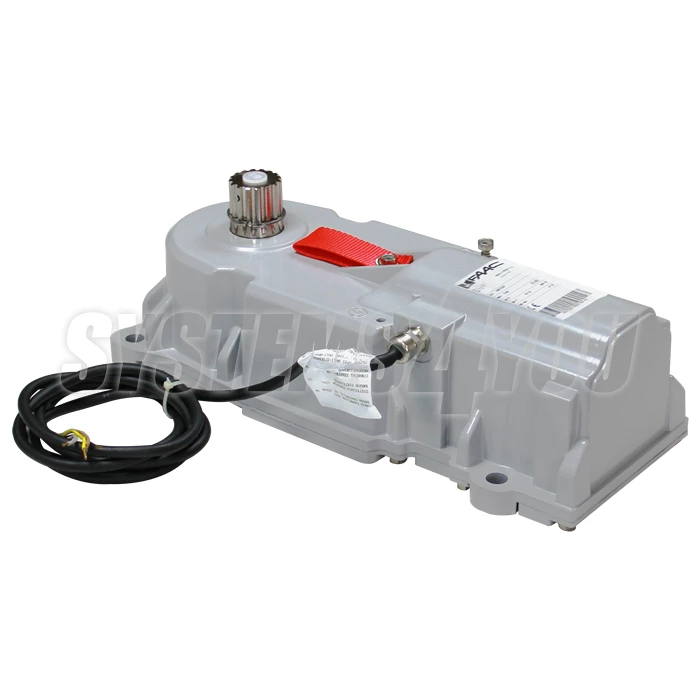

FAAC 770

Manufacturer: FAAC
CODE: 106752

Technical specification

Max. leaf weight500 kg
Indicative hour cycles at 20°C30 (110° and 180°)
50 (140°)
Max. leaf opening angle110° (140° and 180° with kit)
Reduction ratio1400:1
Motor winding thermal cutout140°C
Operating temperature-20°C ÷ +55°C
Maximum torque330 Nm
Angular speed6°/s
Opening time18s (110° and 180°
10.5s (140°)
Operator weight12 kg (carrying box 14 kg)
Type and frequency of use at 20°CS3 - 30%
Power cable length2 m
Protection ratingIP 67
Dimensions360 × 150 × 140 mm
Max. leaf length3.5 m (110°)
3 m (180°)
2.5 m (140°)
Power supply230V~ (+6 -10 %) 50Hz
Absorbed power380 W
Current drawn1.7 A
Electric motor1400 rpm
Capacitor12,5 µF / 400V
Unfortunately this product is no longer available.
Alternatively we recommend this 100% compatible product:
550,00 €
Price with VAT
