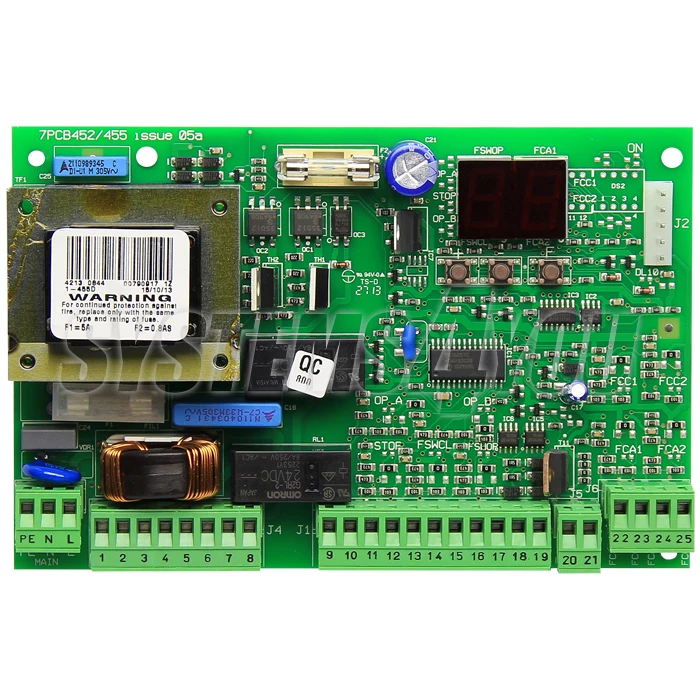

Control board FAAC 455 D

Manufacturer: FAAC
CODE: 790917
Control board FAAC 455 D

Technical specification

Power supply230 V~ ( +6% -10%) - 50 Hz
Absorbed power10 W
Motor max. load800 W
Accessories max. load0,5 A
Electric lock max. load15 VA
Operating temperature-20°C ÷ +55°C
Protection fuses2
Function logicsSemi-automatic
Automatic
Safety devices
"Stepped" semi-automatic
"Stepped" automatic
"Stepped" Safety devices
Semi-automatic B
Dead-man C
Opening/closing timeProgrammable (from 0 to 120 s)
Pause timeProgrammable (from 0 to 4 min.)
Closing leaf delayProgrammable (from 0 to 4 min.)
Opening leaf delay2 s (can be excluded)
Thrust forceAdjustable on 50 levels for each motor
Terminal board inputsOpen
Open free leaf
Stop
Limit-switch
Opening safety devices
Closing safety devices
Power supply + Earth
Terminal board outputsFlashing lamp
Motors
24 Vdc accessories power supply
24 Vdc indicator-light
Fail safe
12 Vac electric lock power supply
Programmable functionsLogic
Pause time
Thrust Force
Torque at initial thrust
Opening and closing leaf delay
Reversing stroke
Over-pushing stroke
indicator light
Pre-flashing
Electric lock
Fail safe
Safety devices logic
Learning functionSimple or complete work time learning, with or without Limit-switch and/or Gatecoder.
Compatible accessories
Compatible radio receivers and antennas
